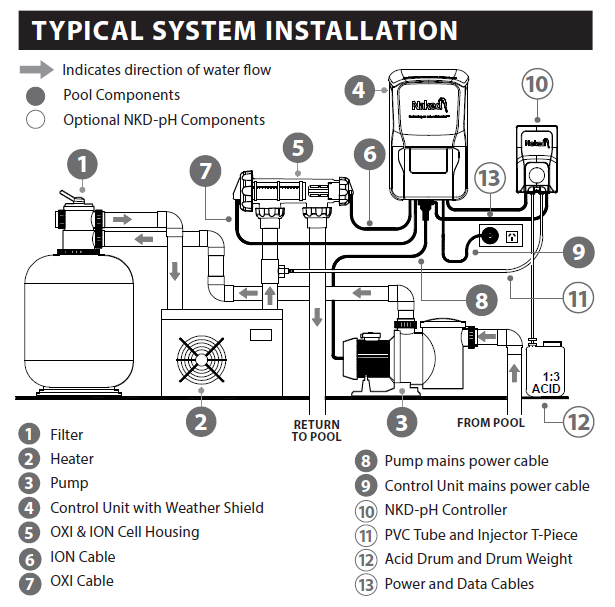

Before you start
The Control Unit has an Ingress Protection Rating of IP23 enabling it to be installed outdoors.
Regulations require that the Control Unit shall be installed outside the pool zone. The Control Unit shall be installed according to AS/NZS 3000 wiring rules.
When mounting the Control Unit on a post it is recommended to install a flat panel at least the same size to act as a waterproof backing plate.
Mounting the Control Unit horizontally or leaving it on the ground will void all warranty.
The Control Unit should be mounted no further than 1.5 metres from the Housing for ease of operation.
STEP 1
Attach Wall Mounting Bracket in the desired location for Control Unit using Wall Plugs and Mounting Screws provided.
STEP 2
Fasten Control Unit including Weather Shield to Wall Mounting Bracket with locking screw provided.
STEP 3
Connect the OXI and ION plugs to the base of the Control Unit ensuring a FIRM CONNECTION.
STEP 4
Plug the Control Unit 3 pin plug into a suitable weatherproof RCD protected 10amp outlet and then plug the pump power cable into the 3 pin AC Socket located at the bottom of the Control Unit.
See ‘External Controllers’ for setup with automation systems.
